All FDI teller trays now have the option of being fitted with our new "Weather Trap".  The trap is designed to keep weather (such as wind and rain), animals, and other unwanted objects from entering the tray when unattended.  This allows the customer to install FDI transaction windows on the exterior of buildings and even in locations without an eave or other such overhang.

The weather trap is operated from the secure side by a simple lever.  There are three
distinct positions that the lever can be in.

Locked	Released	Depressed
Trap cannot be opened from the attack side	Trap can be lifted from the attack side	Trap is opened from the secure side, only while lever is pressed

   Here are the three processes being performed from the secure side.

Below are some pictures of the Weather Trap from various angles and sides.  If you place your mouse over them, the trap will be isolated from the counter.

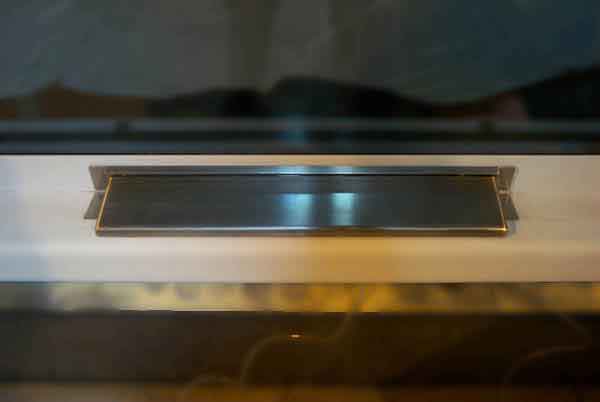

Attack side - Trap closed

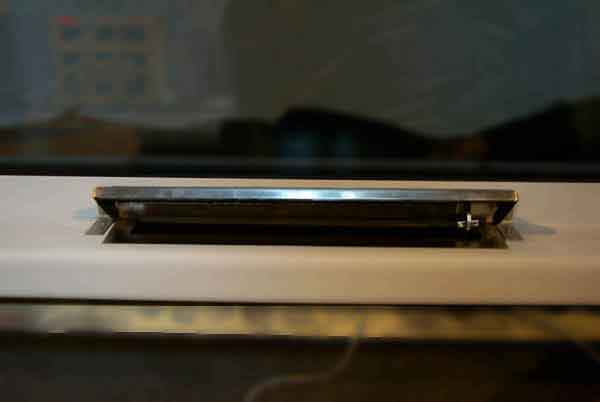

Attack side - Trap open



Secure side - Lever in unattended "locked" position

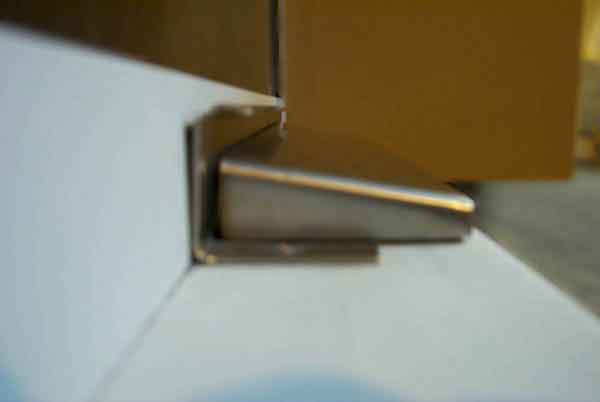

Attack side - Trap closed (side view)

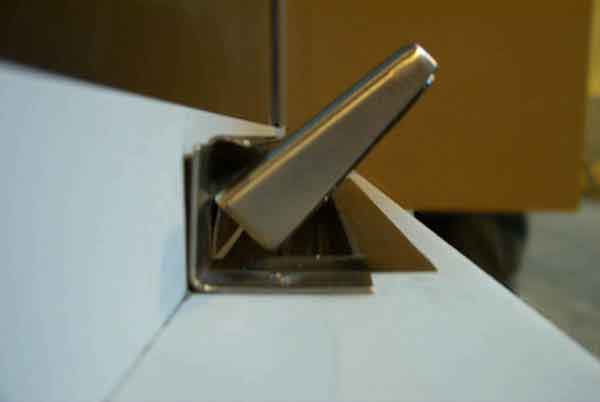

Attack side - Trap open (side view)


FDI TW15M
